Standard spine

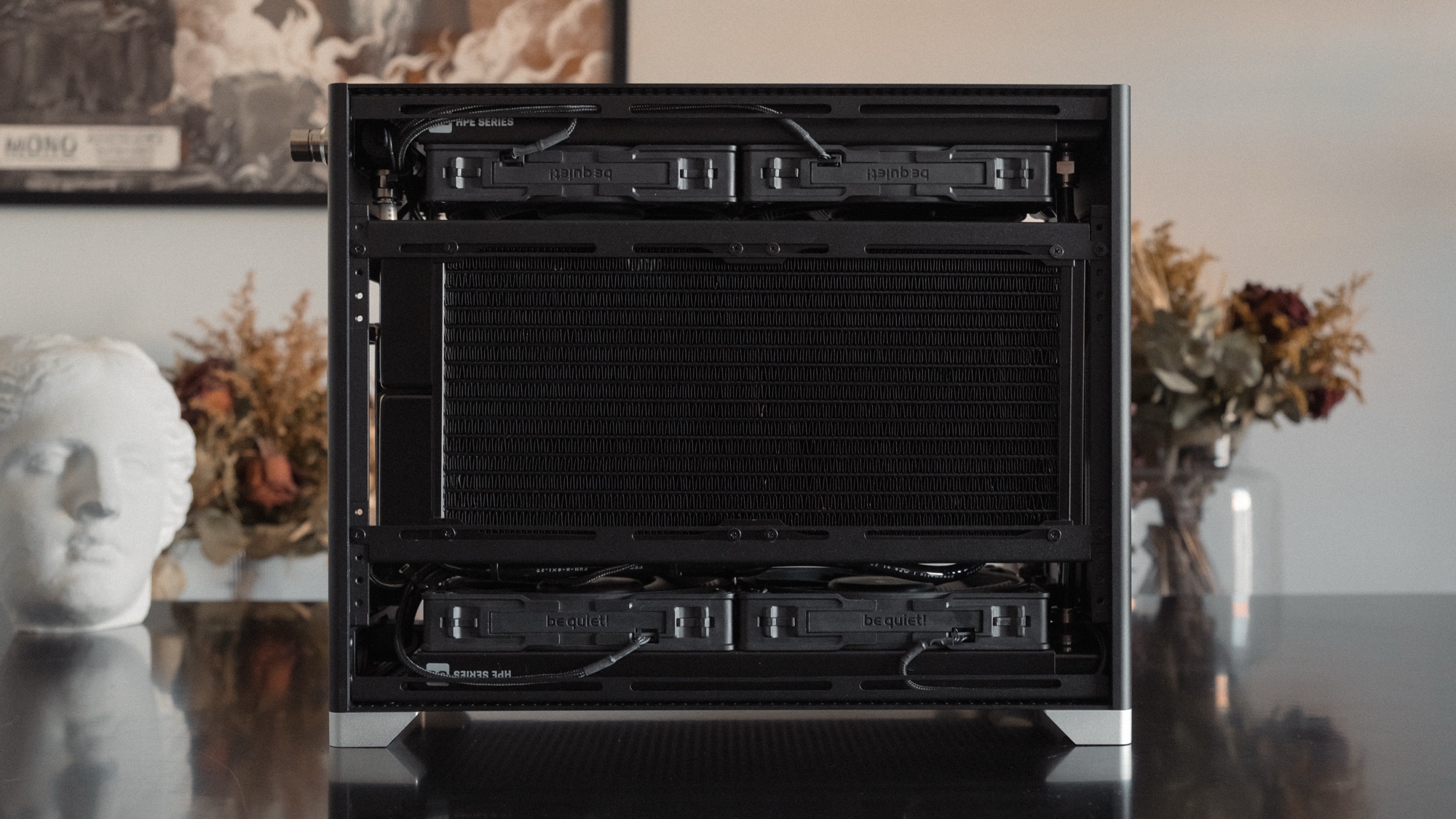

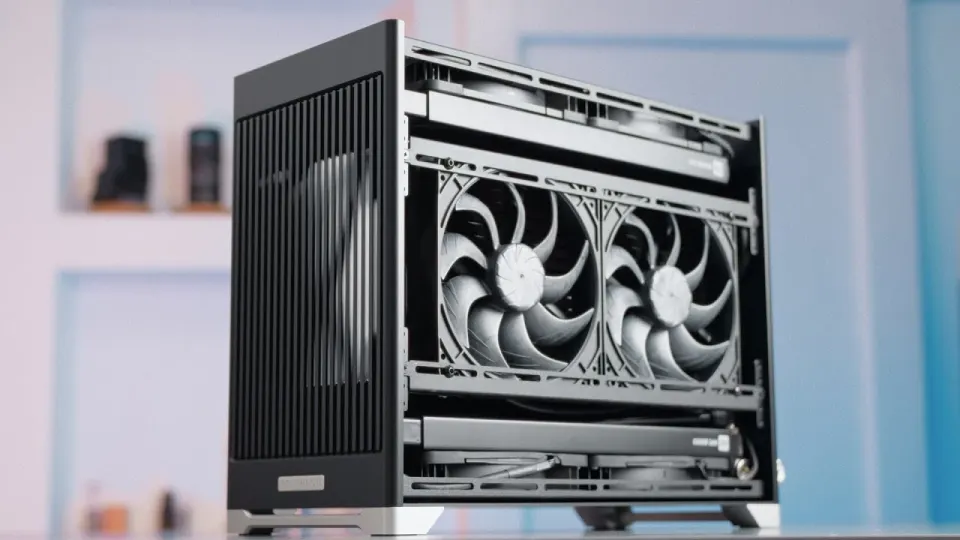

A 20mm 280mm radiator with 25mm fans fits at the top and bottom. The side rails take 25mm fans on both sides, or a third 280mm radiator on one side.
Perseus Cases
Pantheon
18L, sandwich layout, up to three 280mm radiators.
The layout keeps the cooling capacity without giving up the flexibility of a small form factor build.
The fascia takes its shape from the columns of the Parthenon. The name is a nod to how the case was made: not by one designer, but by several.
Key features
Flipped spine

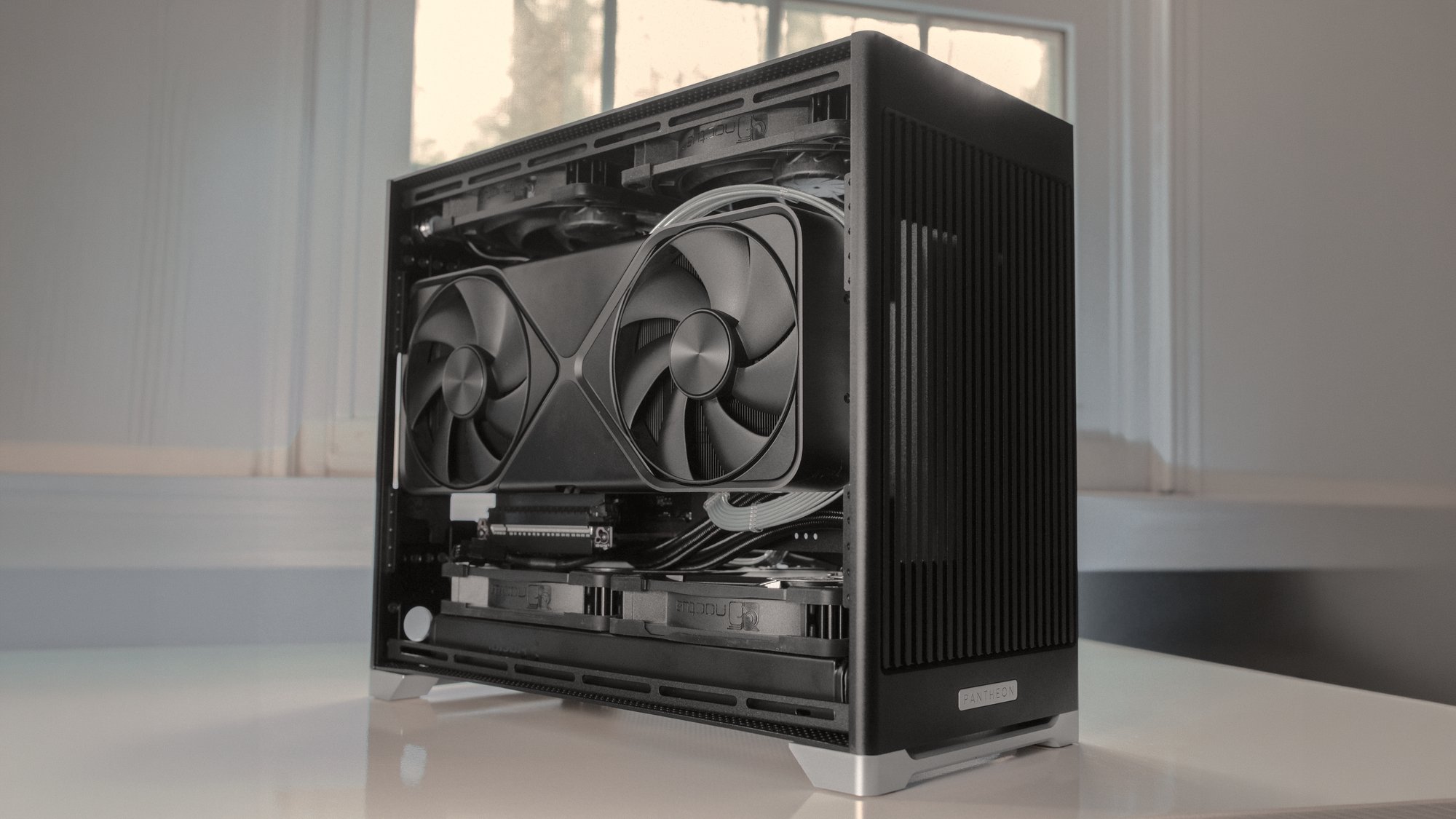

Rotate the spine and the top slot opens to 63mm. Most 280mm AIOs fit, with intake fans still at the bottom and more room for the GPU above. With the spine in its four-slot position, over 70% of flagship AIB cards fit with an AIO on top.
A rear built for filling

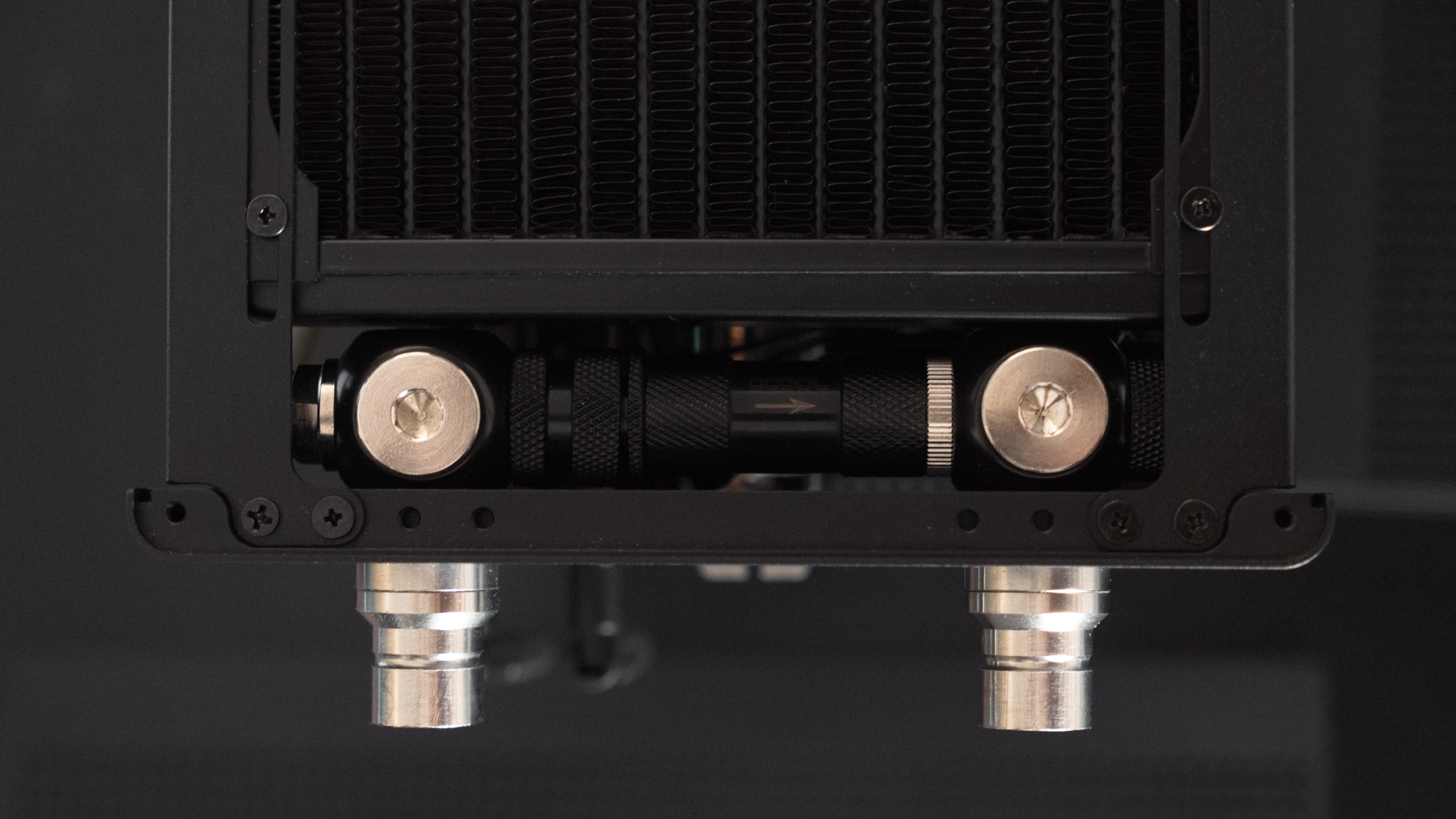

SFF loops rarely have room for an internal reservoir. The rear panel takes a pair of quick disconnects, letting you fill from an external pump or run the loop to an external radiator.
Removable fascia

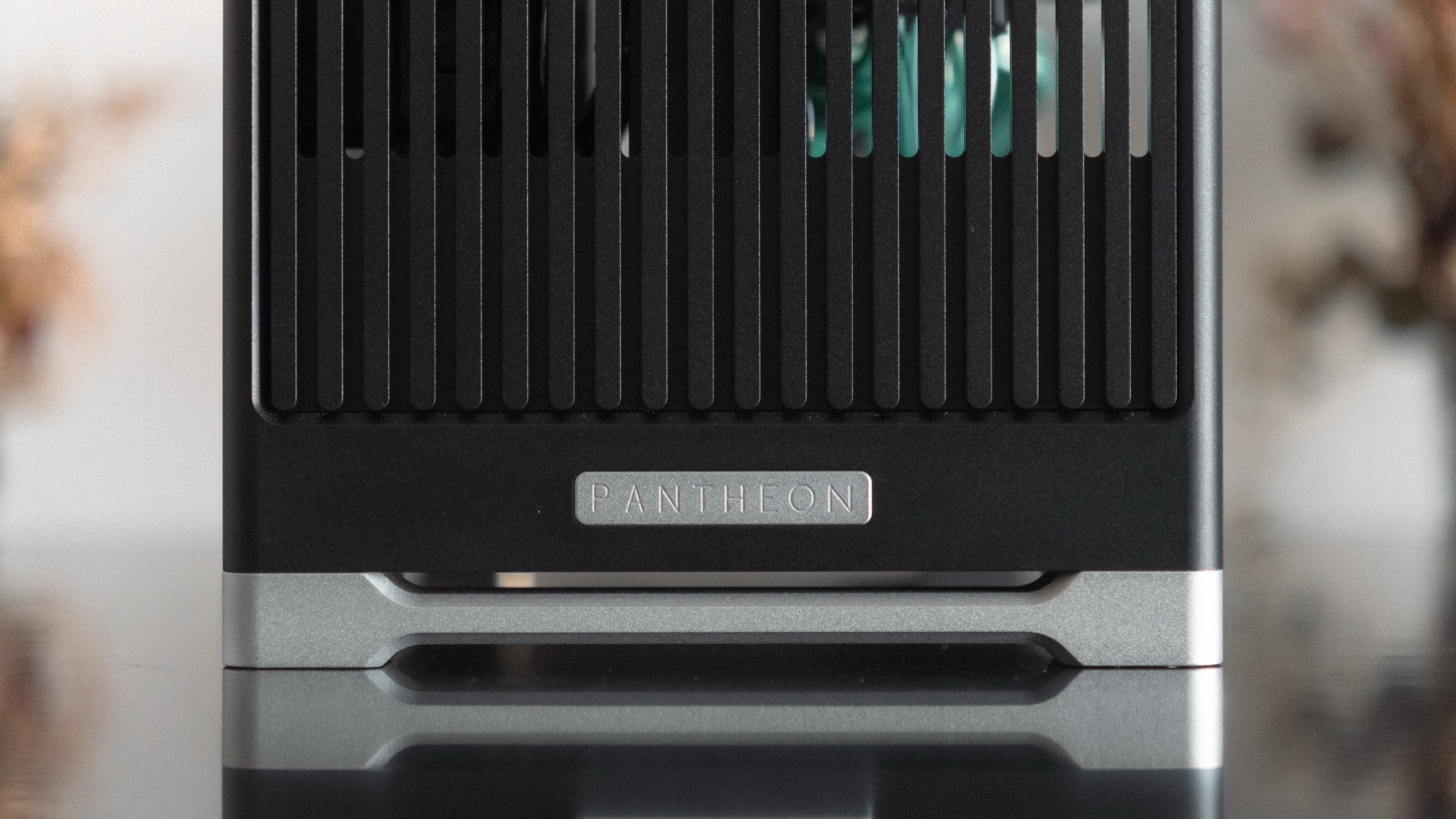

The fascia lifts off for access. Its plate position can take the PANTHEON logo plate or the front I/O panel once available.
Exploded view
Take it apart
The panels come off
Top, sides, bottom and fascia are separate panels.
The frame underneath
Spine and rails carry every mount, movable in half slot steps.
Down to the last bracket
Every panel, rail and bracket, in the order you would remove them.
In the box
Flat packed
The case ships disassembled, in layered foam.
Specifications
Provisional, pre-production.
Dimensions and volume will change as the design is finalized. Updated specs will be published here.
| Dimensions | 356.5 x 170 x 297mm (14.04 x 6.69 x 11.69in) |
|---|---|
| Volume | 18L |
| Materials | Up to 16mm CNC-machined aluminum block, anodized. Up to 2mm carbon steel, powder coated |
| Radiator support | Up to 3 x 280 x 20mm with full thickness fans |
| Alternative | 280 x 20mm top and bottom, plus 2 x 140mm fans each side |
| Flipped spine | Single radiator or AIO up to 63mm |
| GPU | Up to four slots, movable spine, fixable in half slot steps |
| PSU | Front exhausting position. Supports SFX or SFX-L power supply |
| Front fascia | Ventilated and removable. Position for logo plate or front I/O panel |
| Rear | Fixed C14 at the base. Four positions for badge, power button and quick disconnects |
| Shipping box | 394.3 x 322 x 75.1mm (15.52 x 12.68 x 2.96in), ships flat packed |
| Other | Cable management points on spine and radiator rails. Quadro, pump and drive mounting |
Media coverage
First looks
Pantheon has been covered by several builders in the SFF community. Watch their full builds and first impressions.
